| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | Hefei Jingpu Sensor Technology Co., Ltd |
| Certification: | RoHS, ISO9001 |
| Model Number: | WH |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | To be negotiated |
| Packaging Details: | Carton Package |
| Delivery Time: | 2-6Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000K/M |
| Wire: | XLPE UL3266 22AWG 17/0.16 OD1.5 125℃ Red/White | Length: | (225±5）-（3±1）Sn |
|---|---|---|---|
| Tube: | PET Adhesive Sleeve 19mm Black | Conncector: | Molex 431801002 |
| Terminal: | Molex 431781001 | ||
| High Light: | 22AWG Refrigeration Wiring Harness,PET Adhesive Sleeve Wire Harness,XLPE UL3266 Wire Harness |
||

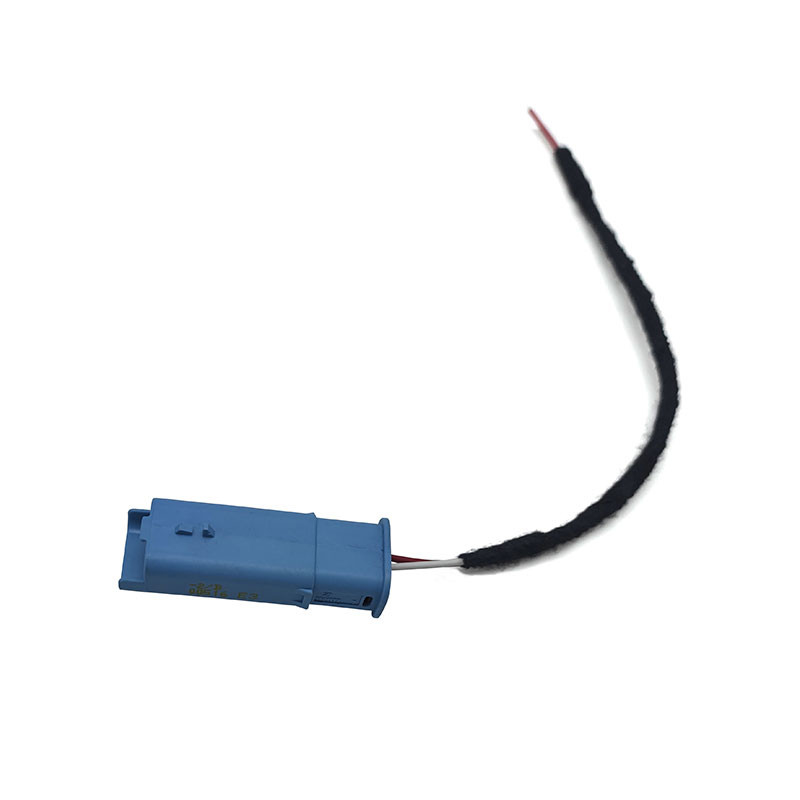

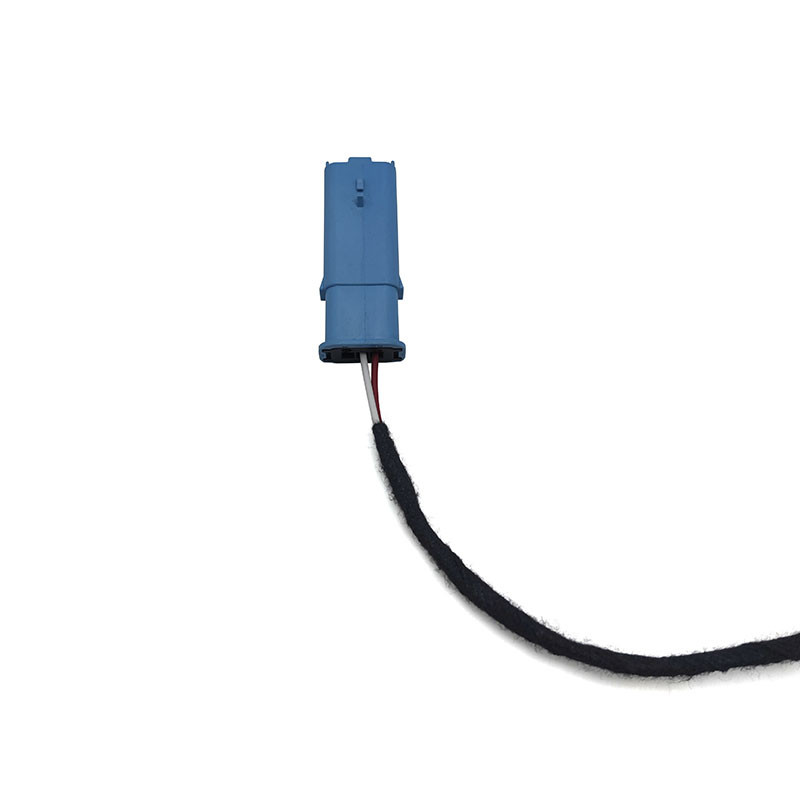

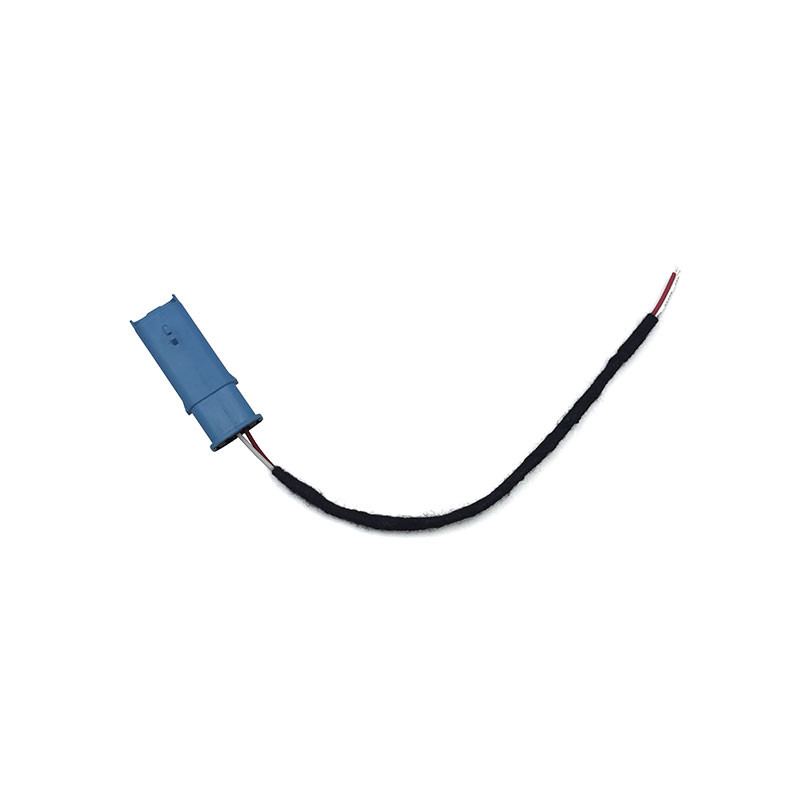

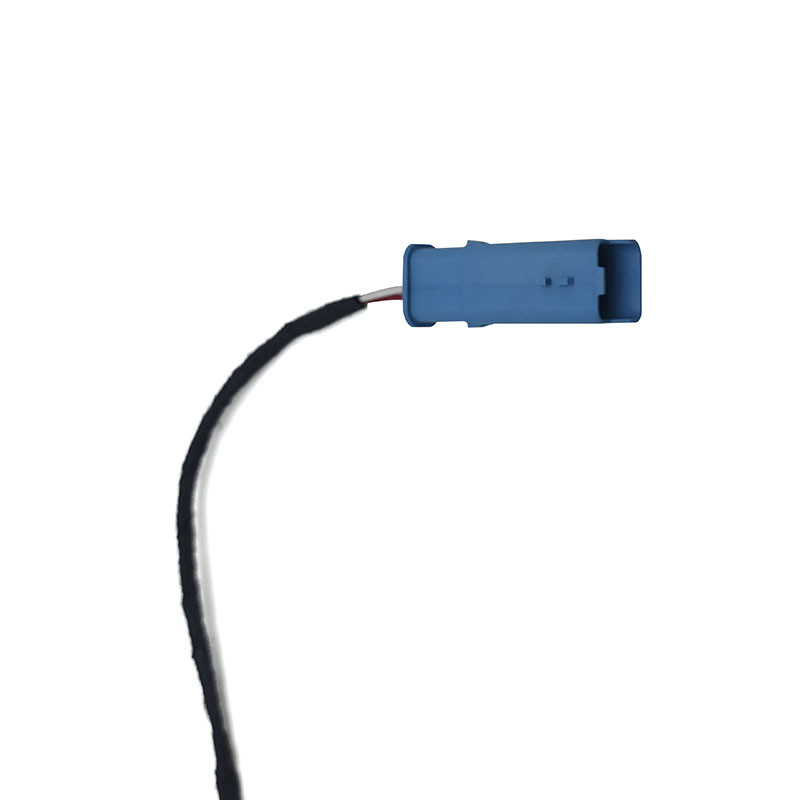

Refrigeration Wire Harness With PET Adhesive Sleeve
A refrigeration wire harness featuring a PET (Polyethylene Terephthalate) adhesive sleeve is a meticulously designed component integral to the electrical system of refrigeration units. The combination of the wire harness and the PET adhesive sleeve serves several essential functions, contributing to the overall efficiency and reliability of the refrigeration system.
1. Electrical Insulation:
The PET adhesive sleeve provides a layer of electrical insulation, preventing contact between individual wires within the harness. This insulation is critical to avoiding short circuits and maintaining the integrity of the electrical signals.
2. Environmental Protection:
The sleeve acts as a protective barrier, shielding the wires from environmental factors such as moisture, dust, and other contaminants. This protection is particularly crucial in refrigeration environments where varying temperatures and potential exposure to moisture are common.
3. Temperature Resistance:
PET is chosen for its inherent temperature resistance. The adhesive sleeve ensures that the wires remain resilient and function optimally despite fluctuations in temperature within the refrigeration unit.
4. Secure Cable Management:
The adhesive nature of the PET sleeve enables secure and uniform binding of the wires within the harness. This contributes to organized cable management, preventing tangling and ensuring that each wire is correctly positioned.
5. Flexibility and Conformity:
PET is known for its flexibility, allowing the adhesive sleeve to conform to the specific layout of the wire harness. This flexibility simplifies the installation process, accommodating the intricate design of refrigeration systems.
6. Identification and Traceability:
Colored PET sleeves or identification markers enhance the ability to trace and identify specific wires within the harness. This aids in installation, maintenance, and troubleshooting activities, promoting efficiency and accuracy.
7. Enhanced Durability:
The combination of the wire harness and PET adhesive sleeve enhances the overall durability of the electrical system. It reduces the risk of wear and tear due to movement, vibration, or external factors, contributing to the longevity of the refrigeration unit.
Installation and Maintenance Considerations:
During the manufacturing process, precision is essential to ensure the uniform application of the PET adhesive sleeve. Adherence to industry standards and guidelines is crucial to guarantee the quality and safety of the wire harness.
Regular inspections and maintenance procedures should be conducted to identify any signs of wear, damage, or deterioration in the PET adhesive sleeve. Prompt replacement or repair is advisable to prevent potential electrical issues within the refrigeration system.
Drawing:
