| Place of Origin: | Anhui, China |
|---|---|
| Brand Name: | JP SENSOR |
| Certification: | ISO9001 |
| Model Number: | DS18B20 |
| Minimum Order Quantity: | 1000 Pieces |
| Price: | To Be Negotiated |
| Packaging Details: | Carton Packing |
| Delivery Time: | 2 Weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Million per Year |
| Accuracy: | ±1°C | Power Supply Range: | 3.0V-5.5V/DC |
|---|---|---|---|
| Stainless Steel Tube Size: | Approx.6.0mm(Diameter) | Operating Temperature Range: | -20℃~+80℃ |
| OEM/ODM: | Available | Shipping: | Air Freight, Sea Freight, Express |
| Stainless Steel Tube: | Φ6*50mm | Measurement Temperature Range: | -55°C - +125°C (-67°F - +257°F) |
| High Light: | High Precision Epoxy Digital Temperature Sensor,Digital Temperature Sensor PVC Sheathed Cable,ISO9001 ds18b20 sensor |
||
High Precision Epoxy Digital Temperature Sensor PVC Sheathed Cable DS18B20
Brief Introduction:

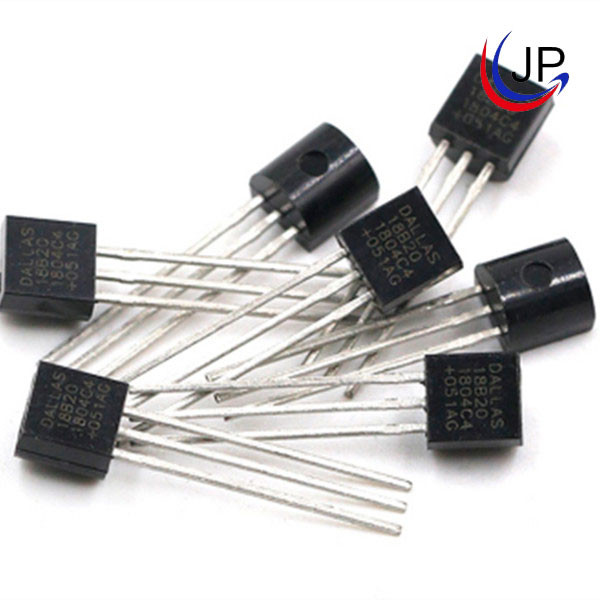

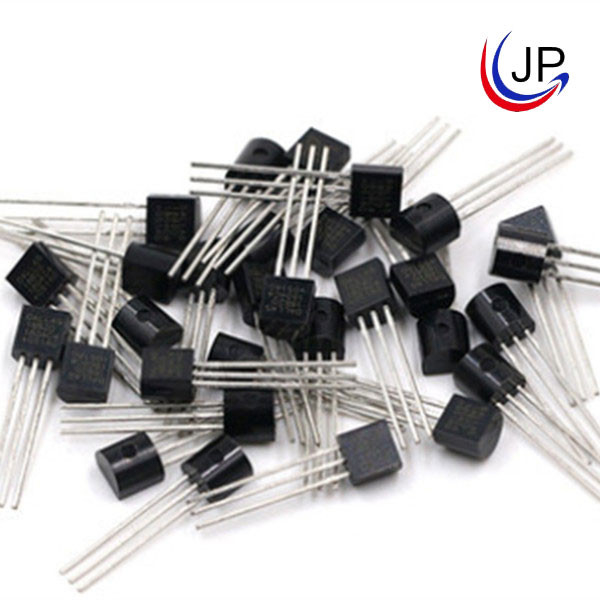

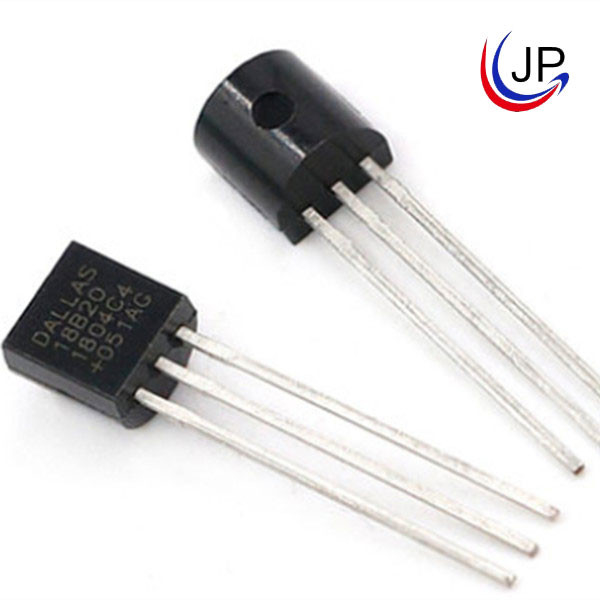

The DS18B20 temperature sensor is a digital sensor widely used for temperature measurement and monitoring purposes. It is known for its accuracy, versatility, and ease of use.
Here are the key features and characteristics of the DS18B20 temperature sensor:
Digital Interface: The DS18B20 sensor communicates using a digital interface, making it compatible with various microcontrollers and systems. It uses the 1-Wire protocol, allowing multiple sensors to be connected on a single data line.
High Accuracy: The DS18B20 sensor offers high precision in temperature measurement. It can provide temperature readings with a resolution of up to 12 bits, allowing for accurate monitoring and control of temperature-sensitive applications.
Wide Temperature Range: The sensor is capable of measuring temperatures within a wide range, typically from -55°C to +125°C (-67°F to +257°F). This versatility makes it suitable for various environments and applications.
Integrated Features: The DS18B20 sensor includes several integrated features that enhance its functionality. It has built-in non-volatile memory to store calibration data and device information, allowing for easy integration and configuration.
Power-Supply Flexibility: The sensor operates on a wide range of power supply voltages, typically from 3.0V to 5.5V. This flexibility enables its use with different microcontroller platforms and power sources.
Multiple Packaging Options: The DS18B20 sensor comes in various packaging options, including waterproof and non-waterproof versions. The waterproof variant is particularly useful for applications that require temperature measurement in harsh or wet environments.
Easy Integration: The DS18B20 sensor is widely supported by software libraries and has a straightforward integration process. It provides a unique 64-bit ROM code for each sensor, allowing easy identification and management in multi-sensor setups.
Low Power Consumption: The sensor is designed to operate with minimal power consumption, making it suitable for battery-powered applications or scenarios where energy efficiency is a priority.
Measurement temperature range: -55°C - +125°C (-67°F - +257°F)
Accuracy: ±1°C.
Power supply range:3.0V-5.5V/DC
Stainless steel tube size:Approx.6.0mm(Diameter)
The stainless steel tube inside be filled in the epoxy
Features:
Comply with RoHS standard
Operating temperature range: -20℃~+80℃(Due to the wire is covered by PVC)
Stainless steel tube Φ6*50mm
Application:
Freezer
Grain elevator
Storage tank
Telecommunications room
Cable trunking
HVAC systems
Cold chain logistics
Industrial systems
Thermostat controls system

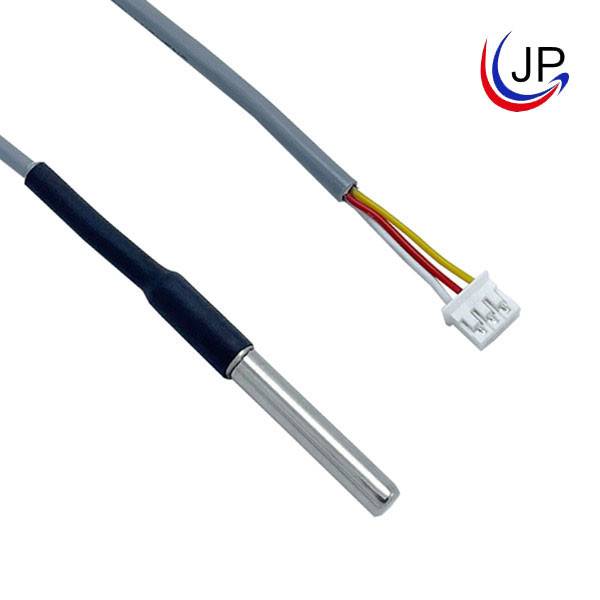

Structure and Dimensions:
| NO. | Name | Material Specification | QTY. | Remarks |
| 1 | Component | DS18B20 | 1 | / |
| 2 | Probe | SUSφ6*50 | 1 | / |
| 3 | Tube | Double-wall heat shrinkable sleeve | 1 | black |
| 4 | wire | PVC 26AWG*3C(red/yellow/white)Round sheathed wire | 1 | Gray |
| 5 | Stripped | Tinned | 3 | / |
